Lewitt LCT 340 Stereo Kit (déballé)

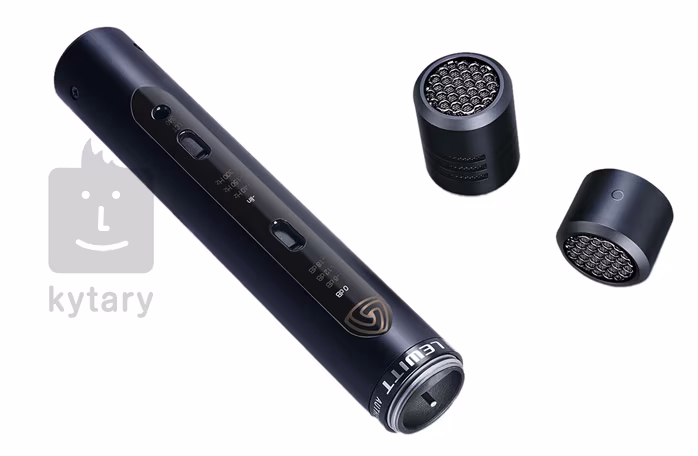

LEWITT’s LCT 340 is a 0.8-inch externally polarized condenser microphone that excels at capturing acoustic and percussion instruments, drums and vocals, and is perfectly suited for sophisticated live and studio applications. Two interchangeable capsules allow for quick and easy switching of patterns, ensuring greater flexibility without changing microphones.

The LCT 340 is equipped with four-position low-cut filter and pre-attenuation slide switches, dual-color LED indicators and a convenient snap closure. It offers a dynamic range of 124 dB and stands out for its extremely low self-noise of 15 dB. Last but not least, its transformerless output makes this ruggedly designed pro-mic resistant to electrical interference and a first-class pick for true sound enthusiasts.

Features and Applications

Features

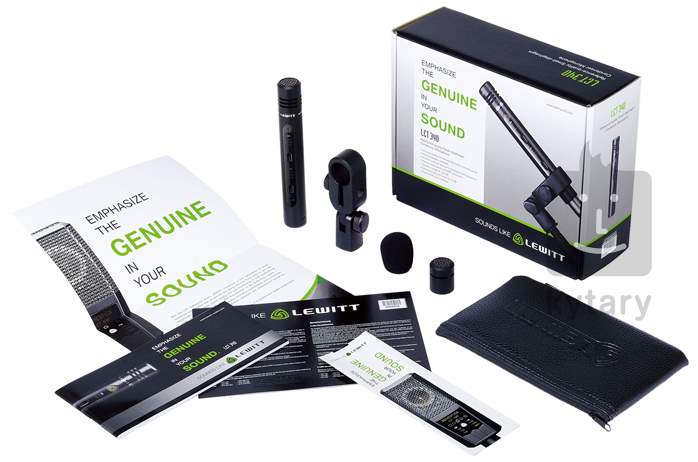

0.8-inch small-diaphragm capsule with ultra-thin externally biased, gold-layered low mass diaphragm for ultra-precise and neutral sound reproductionFlat frequency response for natural, authentic soundInterchangeable capsules for cardioid and omnidirectional pattern selection ensuring maximum flexibility and an undisturbed workflowWide dynamic range of 124 dB and low self-noise level of 15 dB for ear-catching realism and distortion-free sonic depth4-position switchable pre-attenuation pad (0 dB, 6 dB, 12 dB and 18 dB) for handling extremely high sound pressure levels and 4-position high-pass filterIlluminated user interface for quick and easy handling even in dark environmentsRugged black die-cast full-metal body ensures long lifeHexagonal ruthenium-galvanized steel mesh grille to prevent wear and abuseImmune to electromagnetic interference thanks to transformerless preamplifier circuitryCorrosion-resistant gold-plated 3-pin XLR output connectorComes in a cardboard box with foam layers; includes DTP 40 Mts shock mount, LCT 40 Ws windshield, DTP 40 Lb leather bag and an optional omnidirectional true condenser transducer

Top applications

Overhead miking // drums, percussion, ... Ensembles // choral or orchestral Acoustic instruments // piano, guitar, drums, percussion, strings... Wind instruments // brass and woodwinds... Demanding live and studio applications

Tech Data

Acoustical operating principle pressure & pressure gradient

transducers, externally polarized

Transducer O 20,32 mm

0,8 inch

Directional pattern cardioid

omni

Frequency range 20 ... 20.000 Hz

Sensitivity 9 mV / Pa (-41 dBV), cardioid

8 mV / Pa (-42 dBV), omni

Signal / noise ratio 79 dB-A

Equivalent noise level 15 dB-A, cardioid (IEC 61672-1)

16 dB-A, omni (IEC 61672-1)

Dynamic range of mic. Amp. 124 dB-A

Max. SPL for 0,5 % THD 139 dB, 0 dB pre-attenuation

145 dB, 6 dB pre-attenuation

151 dB, 12 dB pre-attenuation

157 dB, 18 dB pre-attenuation

Pre-attenuation pad 6 dB, 12 dB, 18 dB, switchable

Bass cut filter slope 12 dB / octave at 40 Hz

6 dB / octave at 150 Hz

6 dB / octave at 300 Hz

Rated impedance < 150 ohms

Rated load impedance > 1.000 ohms

Supply voltage 48 V + / - 4 V (IEC 61938)

Current consumption 6,6 mA (IEC 61938)

Connector gold plated 3-pin XLR

Dimensions O 24 dia. X 160 mm

O 0,94 dia. X 6,3 inch

Net weight 200 g

7,05 oz
